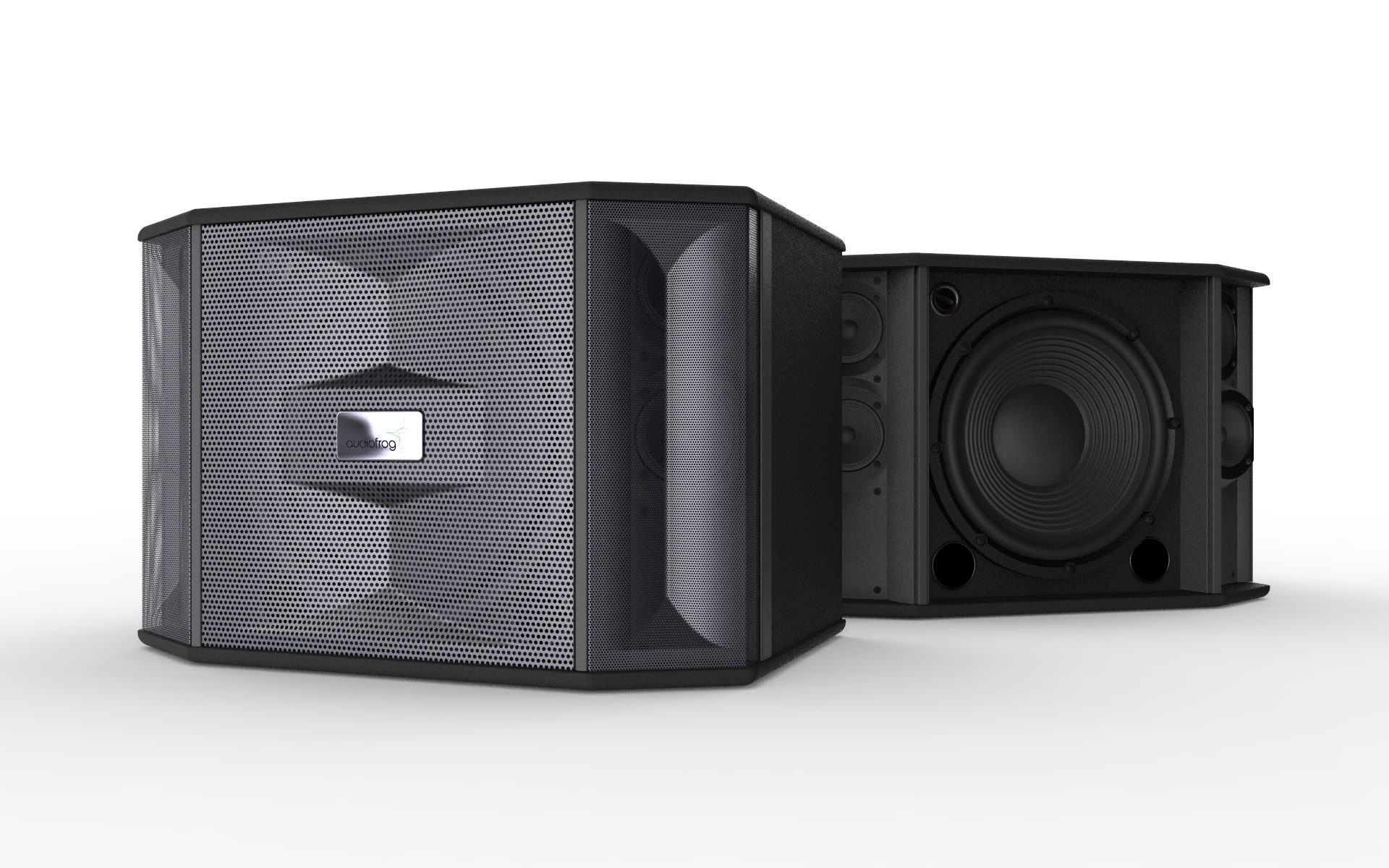

M12F



Description	3-way 5-speaker, 300mm (12") karaoke, movie
	and music Monitor
Maximum Recommended Amplifier Power	300W
Power Handling (Continuous/Peak)	50/500W
Nominal Impedance	6 Ohms
Sensitivity (2.83V/1m)	92dB
Ferquency Response (-3db)	35Hz - 20kHz
Crossover Frequency	1.700 Hz , With high-frequency trim controls
High-Frequency Transducers	Dual 75mm (3") cones with high-temperature
	voice coil
Mid-Frequency Transducer
	with high-temperature voice coil
Low-Frequency Transducer
	voice coil, Keton bobbin
Baffle	Low diffraction
Ports	Dual FreePort flared
Network	2-way 6dB & 12dB coutoff, Dull light fuse
Terminals	Gold-plated, screw terminal
Dimensions ( H x W x D ) per pc	381mm x 585mm x 350mm (speaker)
	460mm x 705mm x 433mm (shipping)
Weight per pc	18.1 kgs (speaker)
	20.5 kgs (shipping)
