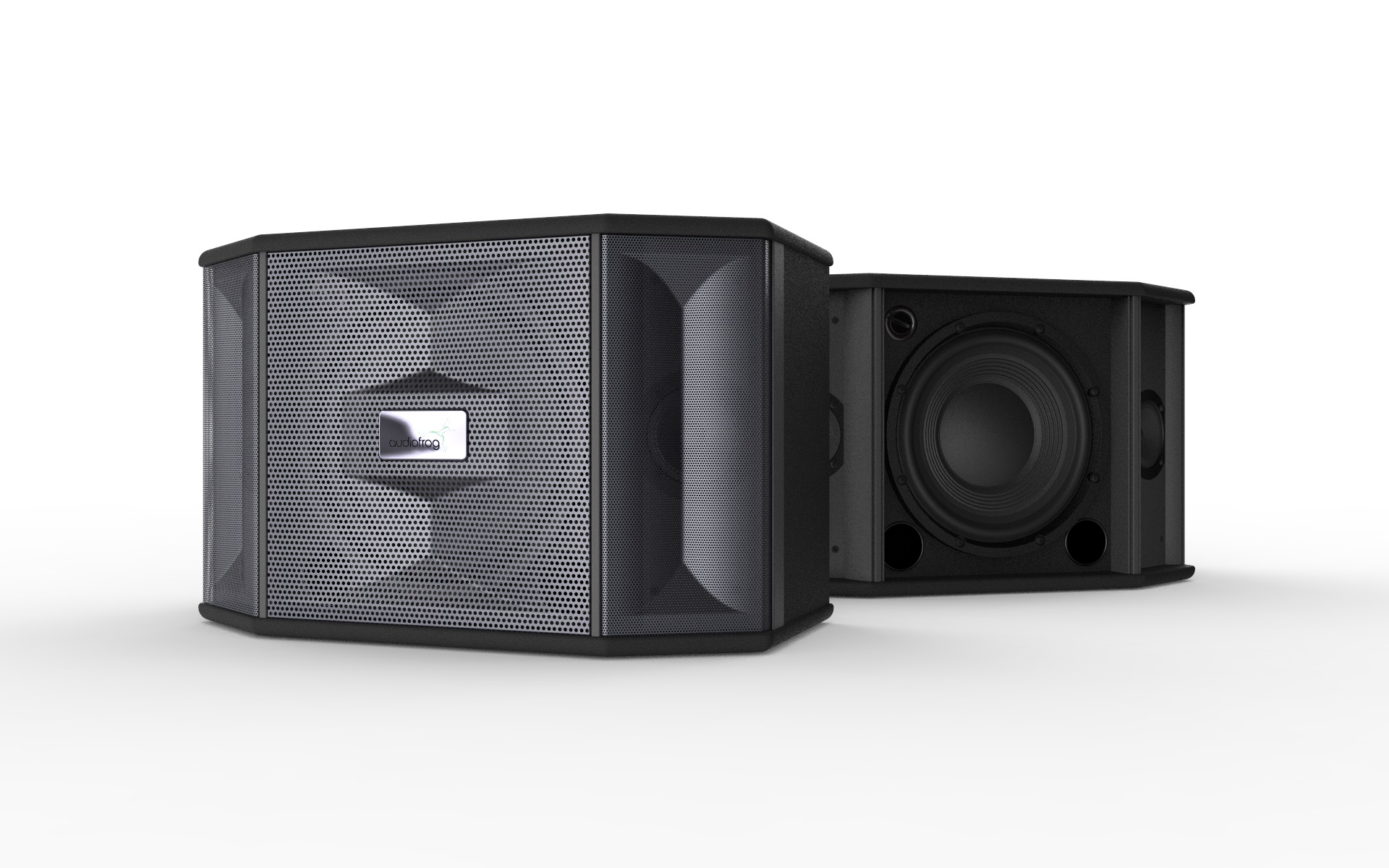

M10F



Description	2-way 3-speaker, 250mm (10") karaoke, movie
	and music Monitor
Maximum Recommended Amplifier Power	200W
Power Handling (Continuous/Peak)	50/400W
Nominal Impedance	6 Ohms
Sensitivity (2.83V/1m)	92dB
Ferquency Response (-3db)	45Hz - 20kHz
Crossover Frequency	2.500 Hz, With high-frequency trim controls
High-Frequency Transducers	Dual 75mm (3") cones with high-temperature
	voice coil
Low-Frequency Transducer
	voice coil, Keton bobbin
Baffle	Low diffraction
Ports	Dual FreePort flared
Network	2-way 6dB & 12dB coutoff
Terminals	Gold-plated, screw terminal
Dimensions ( H x W x D ) per pc	333mm x 536mm x 255mm (speaker)
	412mm x 626mm x 326mm (shipping)
Weight per pc	14.1 kgs (speaker)
	15.5 kgs (shipping)
